Description

SSD-DCDth

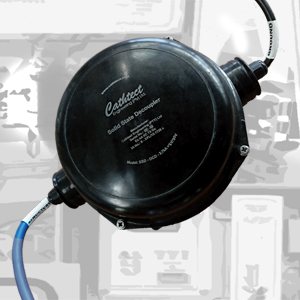

SSD-DCDth / Solid-State Decoupler device is used to isolate or clamp a DC voltage as well as ground AC voltage and ground AC voltage.

So that a safe working environment and required potentials can be maintained.

These devices are designed for a specific application in a Cathodic Protection environment in which they are employed in AC mitigation applications;

• over voltage protection of insulating joints,
• DC isolation
• AC grounding of Cathodically Protected structures.

Types

• SSD-DCDth
• 9kA
• 5kA
• 3,7kA
• 2kA
• 1,2kA

Options for each type

Cathtect’s SSD-DCDth product line consists of 5 standard sizes namely 1,2kA | 2kA | 3,7kA | 5kA | 9,5kA – Therefore each type has 6 different options of DC Threshold to choose from, but they are all @60Hz

Different DC Thresholds to choose from:

• -2V to +2V
• -5,6V to +2V
• 9,2V to 2V
• 12,8V to +2V
• 16,4V to +2V
• -20V to +2V

SABS tested

Solid-State Decoupler SSD-DCDth 3,7kA @ 30cycles 50Hz

Specifications:

• SSD-DCDth
• 3.7kA, +2 to -20V DC Threshold, 30V 45A AC Mitigation Rating, 50/60Hz Frequency
• 1.2kA, +2 to -20V DC Threshold, 30V 45A AC Mitigation Rating, 50/60Hz Frequency
